Addressable control Module - 1 Supervised, Style Y/Z (Class A/B)

Item #:CMF-300
You must be logged in to order this item.
Log in here

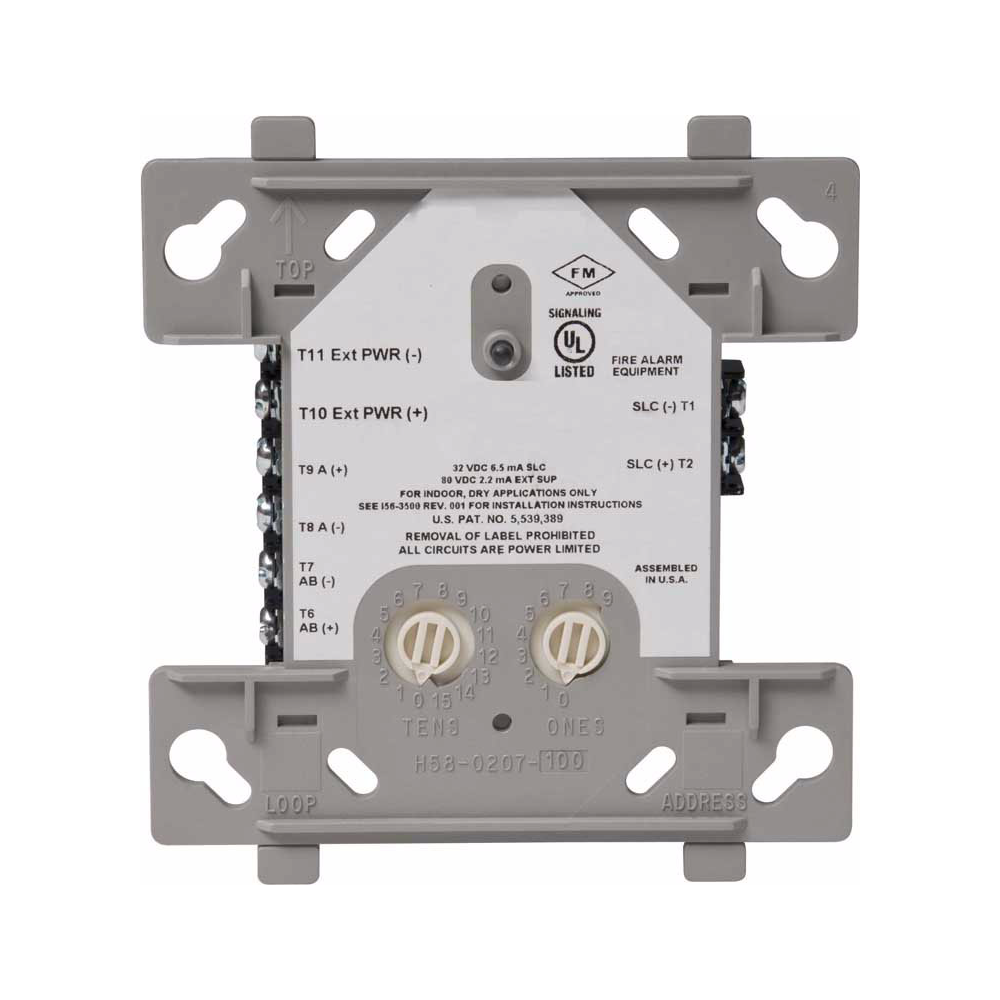

CMF-300

The CMF-300 Addressable Control Module provides FireLite intelligent control panels a circuit for Notification Appliances (horns, strobes, etc.). Addressability allows the CMF-300 to be activated through panel programming, on a select (zone or area of coverage) basis. LiteSpeed is a communication protocol developed by FireLite Engineering that greatly enhances the speed of communication between analog intelligent devices. Intelligent devices communicate in a grouped fashion. If one of the devices within the group has new information, the panel CPU stops the group poll and concentrates on single points. The net effect is response speed greater than five times that of other designs.

Features

  • Built-in type identification automatically identifies these devices to the control panel.
  • Internal circuitry powered directly by two-wire SLC loop. The CMF-300 module requires power (for horns, strobes, etc.).
  • Integral LED blinks green each time a communication is received from the control panel and turns on steady red when activated.
  • High noise immunity (EMF/RFI).
  • The CMF-300 may be used to switch 24-volt NAC power.
  • Wide viewing angle of LED.
  • SEMS screws with clamping plates for wiring ease.
  • Direct-dial entry of address: 01 159 for MS-9600 series panels, 01  99 on MS-9200UDLS and MS-9050UD.

New Catalog

Brand
SYSTEM SENSOR
CMF-300
Addressable control Module - 1 Supervised, Style Y/Z (Class A/B)
