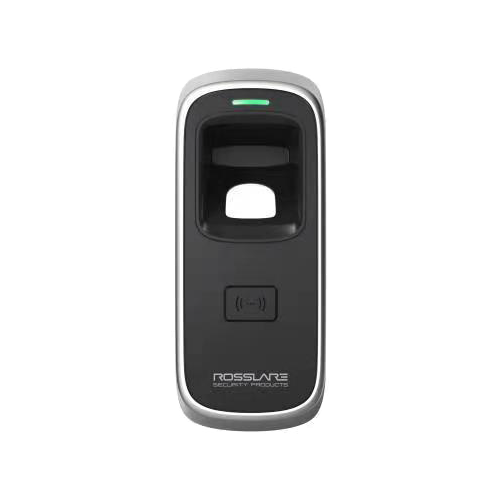

AY-B8650 reader with 13.56 MHz MIFARE credential reader

Item #:AY-B8650
You must be logged in to order this item.
Log in here
AY-B8650
The AY-B86x0 is anti-vandal, featuring a rugged IP65 and IK10 housing with metal reinforcement for outdoor applications. The reader is networked and can be installed using TCP/IP, and can be configured via AxTraxNG Client or by the standalone client/server software RosslareBio 8000 for Windows OS. The reader outputs Wiegand 26-Bit protocol for access control panel connectivity. The water and dust sealed optical chamber features a 500 DPI sensor, capable of reading both wet and dry fingers, and a scratch-resistant glass surface that does not wear down with heavy use for a long product lifetime. The reader can store up to 7,000 templates, and using a high-speed CPU, it can scan a 1:7000 list in less than 1 second. This solution is ideal for any business from one door up to thousands of doors with up to 3500 users per reader (2 fingers per user).
  • Supported by Rosslare AxTraxNG software
  • Small compact design for indoor/outdoor use
  • Anti-vandal (IK10)
  • Capacity for 7000 templates 1:7000 with highspeed CPU (search time is less than 1 s)
  • Combined RFID card and fingerprint for higher security with dual factor applications
  • Built-in TCP/IP / RS-485, and Wiegand connectivity
  • 100,000 non-volatile event log
  • Wide thermal operating range (-20°C to 60°C)
  • Built-in buzzer and LED indication

New Catalog

Brand
Rosslare Security Products
AY-B8650
AY-B8650 reader with 13.56 MHz MIFARE credential reader
