AY-B8550 reader with 13.56 MHz MIFARE credential reader

Item #:AY-B8550
You must be logged in to order this item.
Log in here
AY-B8550

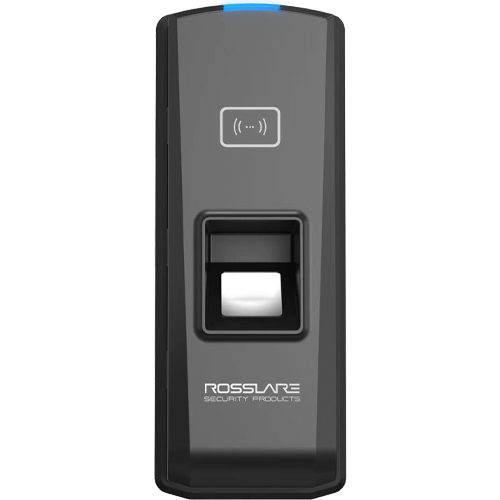

The AY-B85x0 fingerprint and MIFARE (13.56 MHz) or EM (125 kHz) card reader, features a 500-DPI optical sensor, with built-in memory for 7000 FP templates. With TCP/IP, RS-485, and Wiegand 26-Bit connectivity, the AY-B85x0 can be used with any Wiegand supported access control system. This indoor reader features a scratch-resistant FP surface capable of reading both wet and dry fingers, while the high-speed CPU can scan a 1:7000 list in less than 1 second. Each template is assigned a biometric User ID by the controller. When a fingerprint is read and the biometric features are verified as valid, the ID is sent in Wiegand 26-Bit format. The reader does not process the access rights, as this is done on the host controller. Templates and reader settings are managed by TCP/IP connection to the AY-B85x0 using the AxTraxNG™ integrated biometrics features. Alternatively, the RosslareBio 8000 standalone management software for Windows OS interfaces with third-party systems.
  • Small compact design, for indoor use
  • Capacity for 7000 templates 1:7000 with high speed CPU (search time is less than 1 s)
  • Combined RFID card and fingerprint for higher security with dual factor applications
  • Built-in TCP/IP, RS-485, and Wiegand connectivity
  • 50,000 non-volatile event log
  • Wide thermal operating range (-20°C to 60°C)
  • Built-in buzzer and LED indication
  • Modern design that blends into almost any architectural challenge.
