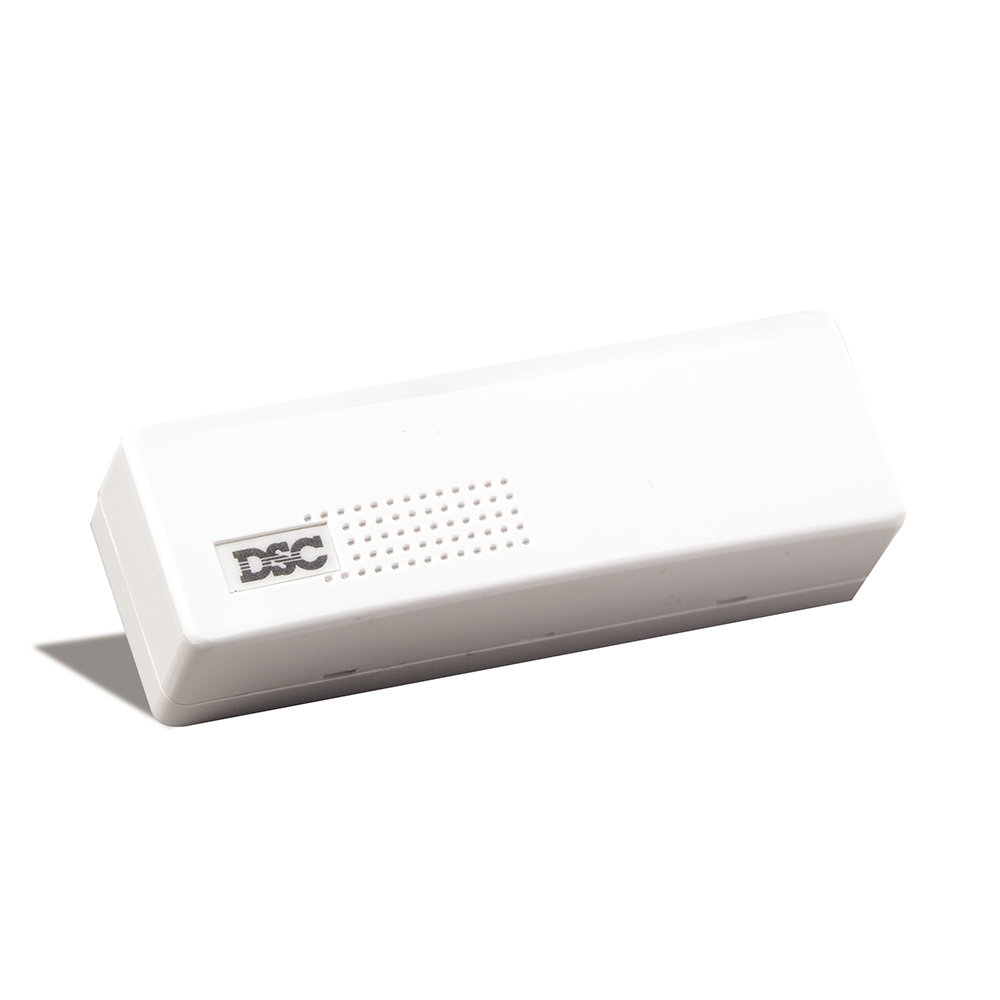

Addressable Door/Window Contact with Normally Closed Input

The AMP-701 has three alarm input terminals to which an external device can be connected. The terminals monitor alarm, tamper and trouble states.

Features:

• No more long wire runs back to the main control panel or expander module for each zone
• Each module is assigned a specific zone number for individual point identification, making service easy
• All detectors are engineered to require extremely low current (some as low as 0.8 mA each)
• All 128 zones of the MAXSYS control panel can be programmed as addressable
• Addressable zone support (up to 32) can be added to either the Power832 or Power864 control panels with the addition of the PC5100 addressable zone expander
