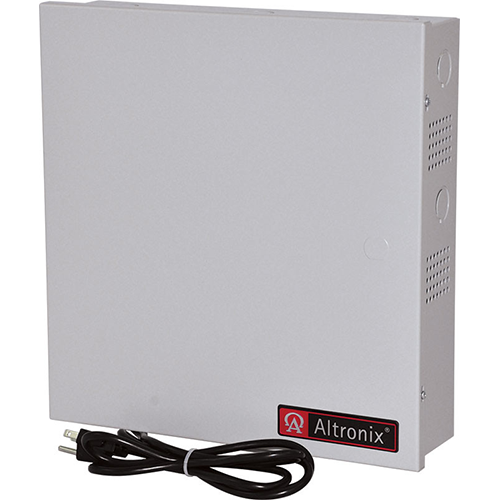

CCTV Power Supply, 8 Fused Outputs, 24VAC @ 12.5A, 115VAC, BC300 Enclosure, includes 3-wire line cord

Item #:ALTV248ULHI3
You must be logged in to order this item.
Log in here
ALTV248ULHI3
ALTV248ULHI3 Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
  • Input
    • 115VAC, 50/60Hz, 3A.
  • Output
    • Eight (8) fuse protected outputs.
    • 24VAC @ 12.5A (300VA) supply current.
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Electrical:
    • Temperature:
      • Operating: 0° C to 49° C (32° F to 120° F).
      • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 154 BTU/Hr.
  • System AC input VA requirement: 345VA.
  • Features:
    • Illuminated master power disconnect circuit breaker with manual reset.
    • Unit maintains camera synchronization.
    • Spare fuses provided.
    • Factory installed 3-wire line cord.
