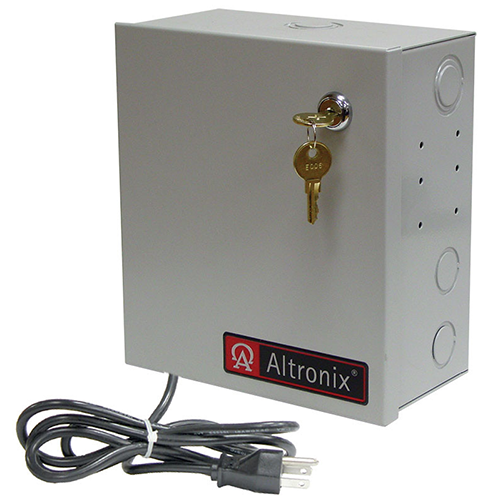

CCTV Power Supply, 8 Isolated PTC Class 2 Outputs, 24VAC @ 12.5A, 115VAC, BC100M Enclosure, includes 3-wire line cord

Item #:ALTV248ULCBMI3
You must be logged in to order this item.
Log in here
ALTV248ULCBMI3
ALTV284ULCBMI3 Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
  • Input:
    • 115VAC, 50/60Hz, 3A.
  • Output:
    • Eight (8) Class 2 Rated PTC protected outputs.
    • 24VAC @ 12.5A (300VA) supply current.
    • Outputs are rated @ 2.5A.
    • Surge suppression.
  • Electrical:
    • Temperature:
      • Operating: 0° C to 49° C (32° F to 120° F).
      • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 154 BTU/Hr.
  • System AC input VA requirement: 345VA.
  • Features:
    • Illuminated master power disconnect circuit breaker with manual reset.
    • Unit maintains camera synchronization.
    • Spare fuses provided.
    • Factory installed 3-wire line cord.

Surveillance Power Supplies

Brand
Altronix
ALTV248ULCBMI3
CCTV Power Supply, 8 Isolated PTC Class 2 Outputs, 24VAC @ 12.5A, 115VAC, BC100M Enclosure, includes 3-wire line cord
