Linear Power Supply Charger, Single Class 2 Output, 12VDC @ 1.2A, 115VAC

Item #:AL624ET
You must be logged in to order this item.
Log in here
AL624ET

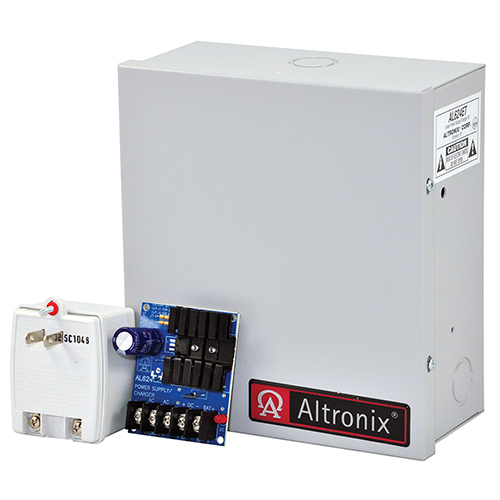

Altronix AL624ET power supply/charger kit converts a 115VAC 60Hz input into 12VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

Features:

  • Power supply/charger with enclosure and TP1620 plug-in transformer (16.5VAC/20VA)
  • Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries

Specifications:
Input:
  • 115VAC, 60 Hz 1.2A.
Output:
  • 12VDC output.
  • 12VDC @ 1.2A supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • PTC battery protection.
Visual Indicators:
  • AC input and DC output LED indicators.
Temperature:
  • Operating 0ºC to 49ºC (32ºF to 120ºF).
  • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 7 BTU/Hr.
  • System AC input VA requirement: 138VA.
