Access Power Distribution Module w/ Power Supply/Charger

Item #:AL600ULM
You must be logged in to order this item.
Log in here

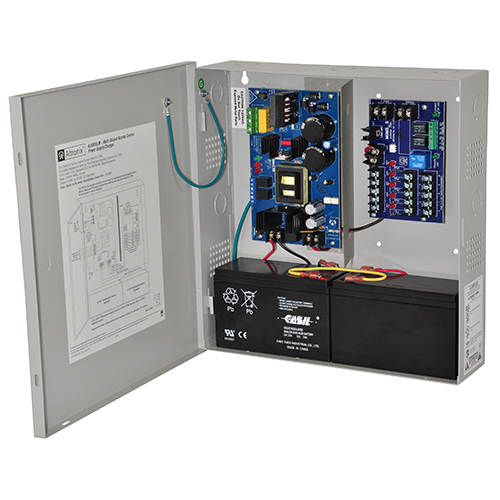

AL600ULM

AL600ULM multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC, 60Hz input into five (5) individually protected Class 2 Rated power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.

Input

  • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A/250V.
  • Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C.supervised trigger input and polarity reversal trigger input.
Output
  • 12VDC or 24VDC selectable outputs.
  • 6A supply current.
  • Five (5) PTC protected Class 2 Rated power limited outputs, rated @ 2A (auto-resettable).
  • Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC).
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
