Access Control Power Supply Charger, 2 PTC Class 2 Outputs

Item #:AL125ULX
You must be logged in to order this item.
Log in here
AL125ULX

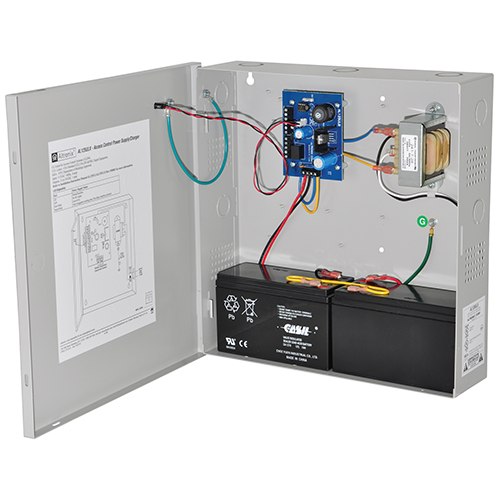

Altronix AL125ULX Series power-limited Power Supply/Chargers convert 115VAC 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.

Input

  • Input 115VAC, 50/60Hz, 0.6A.
  • Access control trigger input.
    • ,/ul> Output
    • 12VDC or 24VDC selectable outputs.
    • 1A supply current.
    • Two (2) Class 2 Rated power limited outputs.
    • Fail-Safe/Fail-Secure lock output (switched).
    • Auxiliary power output (unswitched).
    • PTC protected outputs, rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
