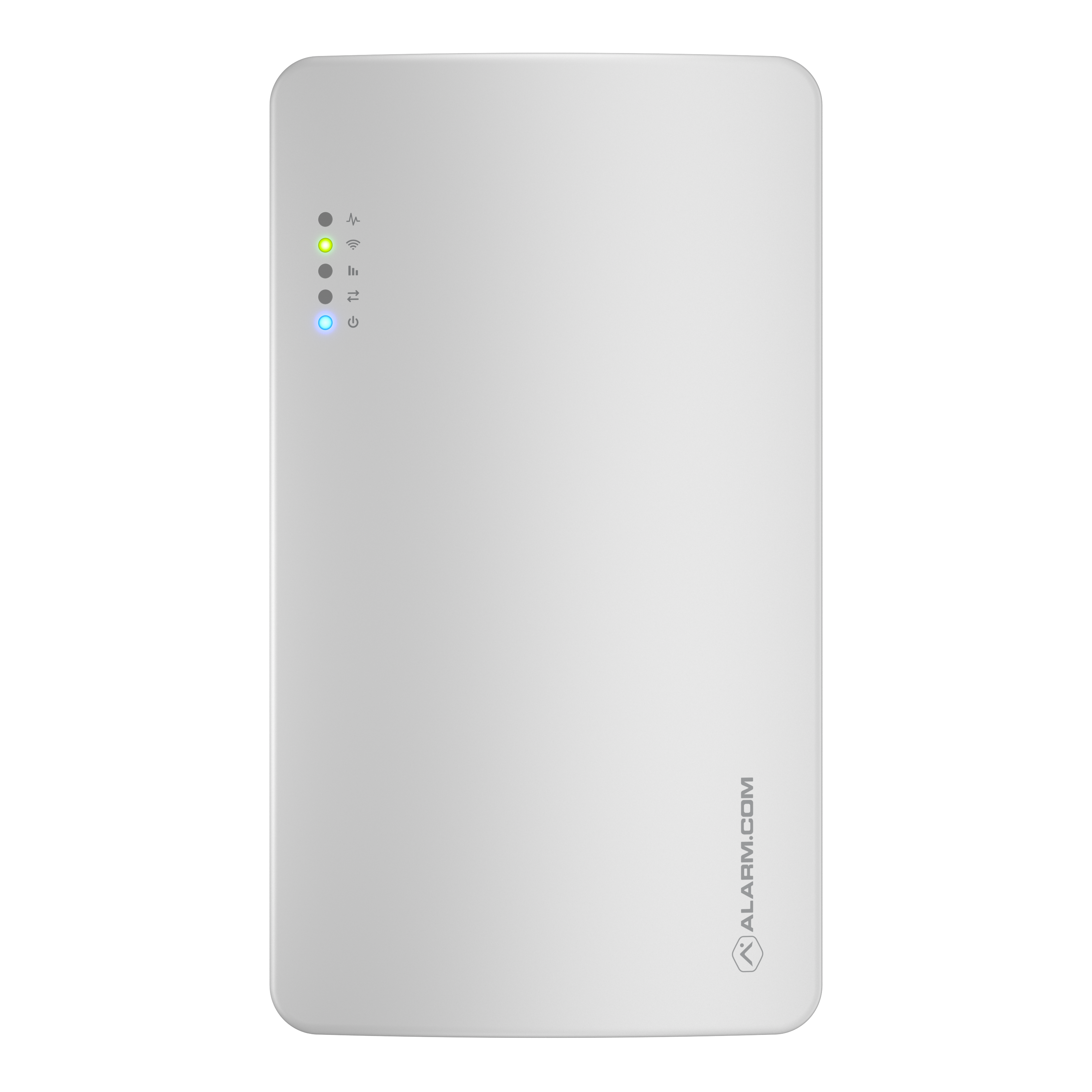

SEM Vista Dual Path US - AT&T, Cat-M

Item #:ADC-SEM300-VT-AT-M
You must be logged in to order this item.
Log in here
ADC-SEM300-VT-AT-M
The Alarm.com ADC-SEM300-VT-AT is a system enhancement module that allows a VISTA P-Series Alarm Panel to connect with the Alarm.com servers. It connects across the AT&T LTE Network and an internet network using a wired ethernet connection
Specifications
Compatibility: Honeywell & ADEMCO VISTA P-Series Alarm Panels and their equivalents
Minimum Panel Firmware: VISTA-15P VISTA-20P Version 5.2+ ; VISTA-10P Version 2.0+ ; VISTA-21iP Version 3.1+ (Check PROM Chip)
Panel Connections: 4-Wire Connection w/ 2-Wire for Data & 2-Wire for Power
IP Communication: Wired Ethernet
Cellular Carrier: AT&T LTE
Cellular Networks: 4G LTE w/ 3G HSPA, and 2G GSM
Automation: Z-Wave Plus
Interactive Platform: Alarm.com
Over-the-Air (OTA) Updates: Yes
Tamper Switches: Cover and Wall Detection
Power Requirements: 12 V nominal, 125 mA nominal (continuous), 230 mA max
LED Lights: Five (5) Total
ETL Listings: UL985, UL1023, and ULC S545
Operating Temperature: 14°F to 131°F
Storage Temperature: -30°F to 140°F
Operating Humidity: 90% Relative Humidity, Non-Condensing
Enclosure Dimensions: 7.66"L x 4.35"W x 1.65"D
Enclosure Color: White
Case Material: Fire-retardant PC/ABS, PC
