Indoor / Outdoor Flush-Mount Weather Resistant Keypad

Item #:232W
You must be logged in to order this item.
Log in here
232W

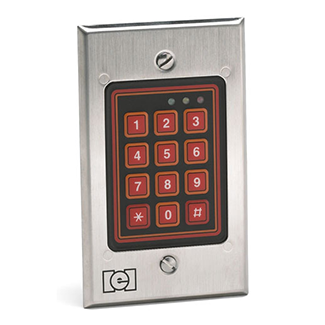

The 232w style single door access control keypad is designed to meet the indoor/outdoor flush mount needs of lighter volume access control environments. The w style features a sealed membrane keypad that allows the keys to be cleaned and resist moisture. There are three LEDs to indicate operation status and provide the user with visual PIN entry confirmation. The w style keypad mounts to most standard single-gang electrical back boxes.

Features

  • 120 users
  • Single-gang design
  • 1 SPDT 2 amp relay and three 1 amp SPDT relays
  • Door Position Monitoring
  • Door ajar, Forced door, Alarm shunt outputs
  • Indoor/outdoor use
  • Functionality mode: 212, 232


Specifications
  • Dimensions: 2.75 in. W x 4.50 in. H x 1.13 in. D
  • Operating voltage: 12-24 VAC/DC  auto adjusting
  • Current draw: 94 mA maximum (add 30 mA for each additional relay)
  • Temperature tolerance: -20F to 130F
  • Order number: 213222
