Indoor / Outdoor Surface-Mount Ruggedized Keypad

Item #:232R
You must be logged in to order this item.
Log in here
232R

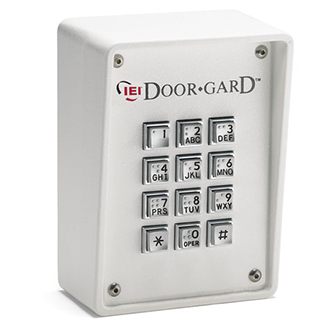

The ruggedized R style 232R keypad features a cast aluminum housing and all-metal faceplate that has been treated with polyurethane to increase its protection from corrosion. The ruggedized uses an all metal Braille, alpha-numeric keys. There is also an internal sounder that is used to indicate key press feedback. The Ruggedizeds housing can be mounted to a variety of surfaces. Suggested mounting includes; gate goosenecks, post, concrete walls, etc. Additional tamper resistance is provided with the onboard tamper loop that can be used to indicate the removal of the faceplate

Features

  • 120 users
  • Indoor/outdoor weather resistant, self contained metal housing
  • Surface mount vandal resistant design
  • One piece housing suitable for wall, post, or gooseneck mounting
  • Durable metal Braille alpha-numeric keys
  • 1 SPDT 2 amp relay and 3  1 amp SPDT access relays
  • Door Position Monitoring
  • Door ajar, Forced door, Alarm shunt outputs
  • Functionality mode: 212, 232


Specifications
  • Current draw: 108 mA maximum (add 30 mA for each additional relay)
  • Operating voltage: 12-24 VAC/DC  auto adjusting
  • Dimensions: 3.75 in. W x 5.25 in. H x 2.50 in. D
  • Temperature tolerance: -20F to 130F
  • Order number: 0-213466
