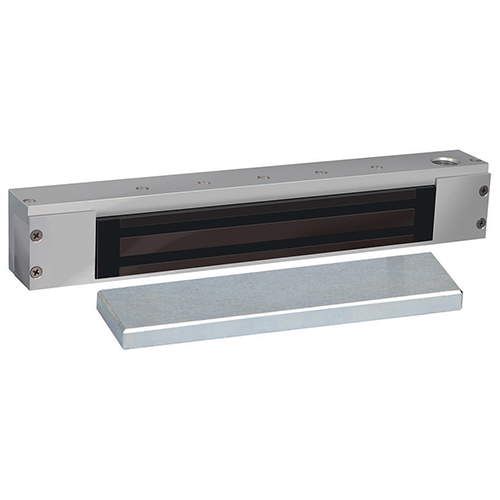

Magnetic Lock For Single Out-Swinging Doors, Push Side Mount

Item #:171HD
You must be logged in to order this item.
Log in here
171HD
The 171HD offers continuous monitoring capability for open/close status or attempted unauthorized entry. The fail-safe magnets offer the ability to securely lock fire exit doors, while also powering down when signaled to do so by an appropriate door control unit. Designed for easy installation and maintenance, the 171HD will accommodated most doors and frame conditions without requiring a filler plate or a special bracket.
  • Low projections from header. This will accommodate most door conditions without the need for filler plate or special bracket
  • Low energy consumption; 0.26 amp @ 24VDC 0.50 amp @ 12VDC
  • 1200 lbs. holding force
  • Door position switch (DPS) standard feature
  • Built-in surge protection.
  • Easy installation and maintenance.
  • No pins, latches or moving parts to avoids failure that could impede safe egress in an emergency situation.
  • Satin anodized aluminum finish
