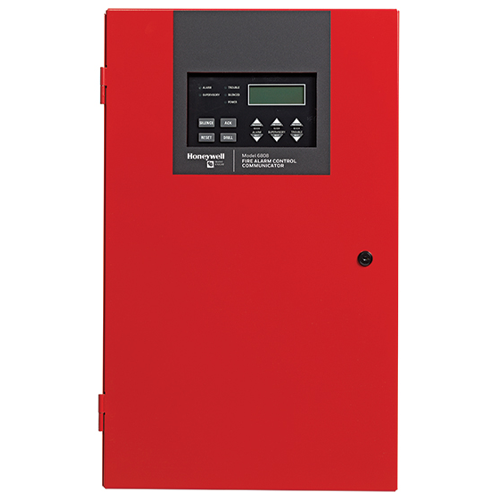

198-PT Addressable Fire Alarm Control Panel

Item #:006808
You must be logged in to order this item.
Log in here
006808
Maximum 198 point single loop addressable fire alarm control panel. Includes connected panel options, enhanced communications, wireless detection and other advanced features. (Replaces the 5808)
  • Connect up to 17 panels with convenient single point visability. Copper wire or fiber optic cable panel connectivity can be used within the same linked system. Compatible FACPs can be linked within one system
  • Built-in dual path IP and POTs communication for reliable dual path backup
  • Built-in USB interface for convenient and speedy programming
  • SWIFT® capable for wireless detection -- perfect for hard-to-wire installs
  • Field-upgradeable firmware saves time and money - no need to return panels for updates
  • Supports up to 12 remote annunciators for convenient and efficient system status reporting
  • Large easy-use keypad and 4 x 20 - 80 character display
  • Includes access to Jumpstart™, HFSS programming software and the SKST selection tool
  • NAC Circuits: 4; 6 amps power supply
  • Supports Class B (Style 4) and Class A (Style 6) configuration for SLC, SBUS, and Flexput circuit
