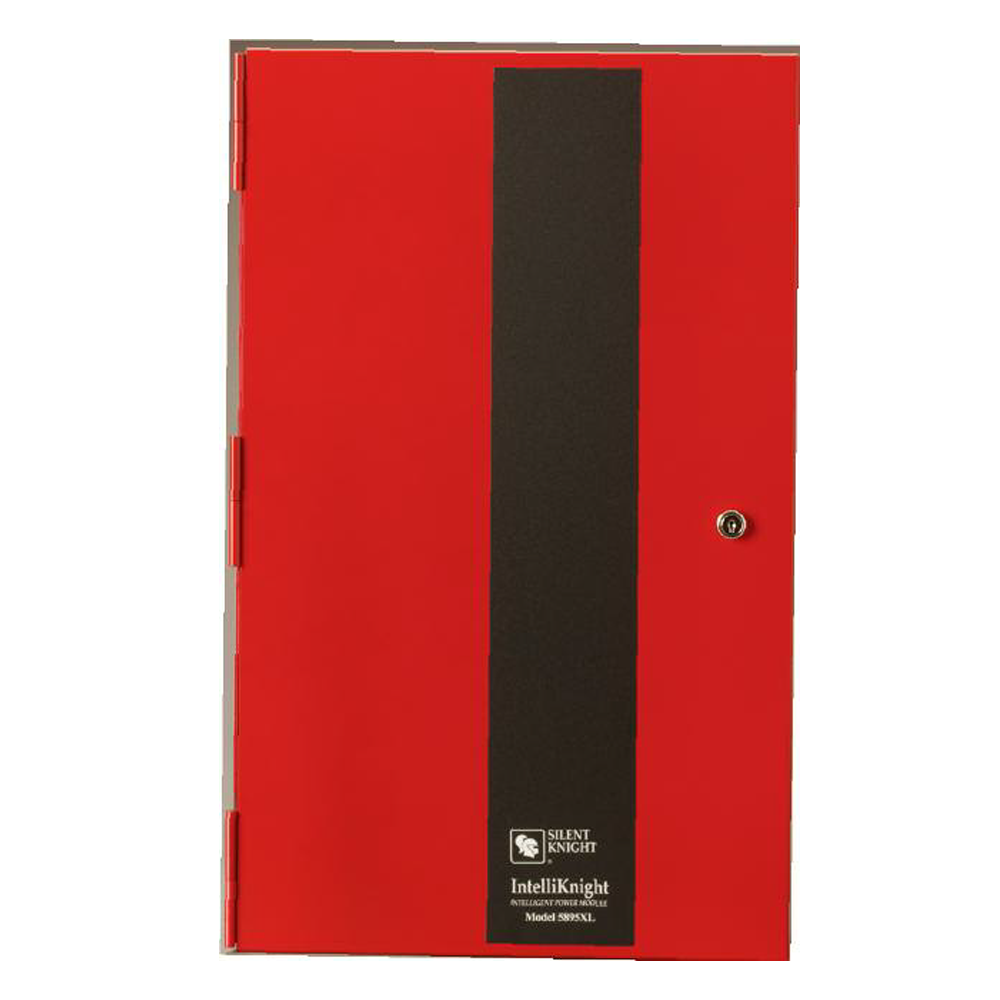

IntelliKnight Distributed Power Module, 6 Amps, 2 Relays

The 5895XL intelligent power module is a 6 amp notification power expander that provides its own AC power connection, battery charging circuit, and backup battery for use with Silent Knight addressable fire alarm control panels. Six Flexput circuits can be programmed as notification appliance circuits, conventional initiation circuit, or auxiliary power for constant, resettable or door holder power. The 5895XL also provides a conditioned SBUS circuit allowing up to an additional 6,000 feet of wiring for SBUS devices.

Features

• 6A output power
• Six Flexput circuits rated at 3A each can be programmed as notification appliance circuits, auxiliary power, or initiation circuits
• Supports Class A configuration for SBUS and Flexput circuits
• Each output individually mapped through fire alarm control panel programming
• Two form C programmable relays rated at 2.5A at 24VDC
• SBUS repeater conditions the RS-485 signal
• Room in cabinet to mount two 5815XL SLC expanders
• Built-in synchronization for appliances from AMSECO, Gentex, Faraday, System Sensor, and Wheelock
• UL listed
